The French folding gauze swab making machine in our product lineup is designed to produce gauze swabs with unfolded edges, which are perfect for wound cleaning and general medical use. Unlike the American folding method, the French folding technique leaves the edges of the gauze swab unfolded, allowing for greater coverage and flexibility. This unique approach enhances the versatility and usability of the swabs in various medical scenarios. It produces sterile gauze swabs with unfolded edges, making them ideal for non-surgical applications. The versatility of this unit allows it to produce gauze swabs in various sizes, including 5×5 cm, 7.5×7.5 cm, and 10×10 cm, meeting diverse medical requirements. The simplicity of the French folding method makes it a cost-effective solution for producing high-quality dressing disposables.
This unit produces gauze swabs with unfolded edges, which are perfect for non-surgical applications such as wound cleaning and general medical use. The gauze swab French folding making machine ensures that each swab is made to the highest standards, providing healthcare professionals with reliable tools for patient care. The different size options, such as 5×5 cm, 7.5×7.5 cm, and 10×10 cm, ensure that the sterile gauze swabs can be used for a variety of medical purposes. The French folding method is simple yet effective, making the production of folded edge gauze swabs and other dressing disposables more economical. This method allows for the production of high-quality gauze swabs at a lower cost, benefiting healthcare facilities and gauze swab French folding manufacturers. The unfolded edges of the gauze swabs make them easier to apply and remove, providing convenience for healthcare professionals during wound care. The French folding gauze swab making machine is designed to deliver consistent and reliable sterile gauze swabs, ensuring that medical staff can perform their duties efficiently and effectively.
| Description | Specification | Unit | ||||
|---|---|---|---|---|---|---|
| Driving rollers | Flute type | Gauze cotton driven | ||||
| Folding type | French folding | Edges unfolded type | ||||
| Ply | 8 / 12 | Pre folding not required | ||||
| Braking & friction system | Mechanical type | |||||
| Drive/ Cutting motor | Servo motor 750 W B2 model without brake | |||||
| Stacking motor | Servo motor 400 W B2 model without brake | |||||
| Gear box | 1 : 10 planetary gear box | 2 no's | ||||
| Communication & synchronization | PLC - AS228T - Input: 16DI, Output 12DO Addon - AS16AP11R - Input: 8DI, Output 8DO | |||||
| Display & operation | HMI 10 inch Ethernet model DOP-110 WS | |||||
| EMI filters | Elcom, 1 ph, Amps: 15 a | |||||
| Total power | 2.0 kw | |||||
| Input voltage | 440 | v | ||||
| Machine Model | Working Width | Lane | Weight | Production Capacity | Dimension | Manufacturing Sizes |

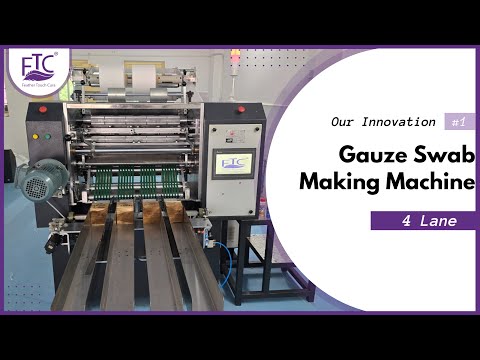

| FTC GS 7.5 - F4 | 400 mm | 4 | 1300 kg | 180 pcs - per min | W 4.5 ft * L 14 ft * H 7 ft | 7.5 * 7.5 cm |
| FTC GS 10 - F4 | 500 mm | 4 | 1600 kg | 180 pcs - per min | W 5 ft * L 14 ft * H 7 ft | 10 * 10 cm |
| FTC GS 7.5 - F2 | 200 mm | 2 | 1200 kg | 100 pcs - per min | W 3 ft * L 12 ft * H 7 ft | 7.5 * 7.5 cm |
| FTC GS 10 - F2 | 350 mm | 2 | 1350 kg | 100 pcs - per min | W 3.5 ft * L 12 ft * H 7 ft | 10 * 10 cm |
| FTC GS - F2 | 300 mm | 2 | 1500 kg | 80 pcs - per min | W 4 ft * L 14 ft * H 7 ft | 5 * 5 cm, 7.5 * 7.5 cm, 10 * 10 cm |
| FTC GS - F4 | 600 mm | 4 | 2000 kg | 80 pcs - per min | W 6 ft * L 14 ft * H 7 ft | 5 * 5 cm, 7.5 * 7.5 cm, 10 * 10 cm |
